Equipment Overview:
This series of equipment is a full-automatic high-precision winding machine which provides controllable coil lead for automatic production line.It adopts automatic winding, automatic reclaiming, automatic stretching, automatic turning over, automatic bending of lead wire radian, automatic placing of fixture and automatic collection of waste materials, which greatly improves the full-automatic production efficiency.
Equipment features:
The advanced high precision motion controller is used in this series of winding machines. The motion controller can carry out high-precision linear positioning, circular interpolation positioning, long service life and programmability, which ensures the high efficiency and precision of the products, small deformation and improved product quality. Special winding coils can be designed according to the requirements of customers.
Field of application:
1511Speaker voice coil, 1206 speaker voice coil, 1506 speaker voice coil, 1609 horn voice coil, air core coil, special coil
It is suitable for automatic production line.
Equipment parameters:
name |
parameter
|
name |
parameter |
model |
XT-818 |
Number of winding spindles |
2axis |
Dimensions |
880(W)×1900(L)×1800(H)mm
|
Spindle speed |
≤4000rpm
|
Machine weight |
About 800kg |
Applicable wire diameter |
0.018-0.2(mm) |
Power Supply |
AC220 V ± 10% single phase 50 / 60Hz |
Coil height |
≤8mm |
Power consumption |
About 4.50kw |
Coil outer diameter |
≤ φ 30mm (special customizable)
|
Air source |
0.4Mpa~0.7Mpa |
Lead wire position |
The angle can be set arbitrarily
|
Spindle direction |
Clockwise / counterclockwise
|
Length of outgoing line |
40-80mm (special customizable) |
Control mode |
touch screen |
Thread cutting mode |
Custom blade cutting |
Number of control axes |
18Axis servo
|
Tension device |
Servo tension device |
capacity |
300-550pcs per hour (15 cycles per layer, 4 layers as an example) |

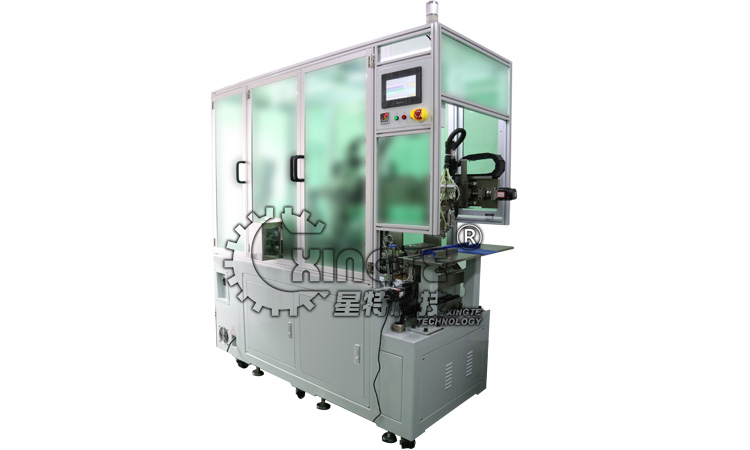

Equipment appearance:
